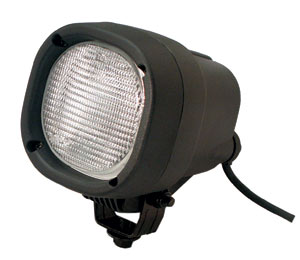

Tyri 1010 HID |
|
The
1010 HID (High Intensity Discharge) lights provide
significantly more light (lumens per watt-Luminous
Flux). The 1010 HID
provides light of daylight quality with a luminous
flux of 3,250 lumens (equal to 4 standard 55W
halogen lights). HID bulbs have approximately
10 times the burn life of halogen bulbs. When
replacing halogen lights with HID lights, most
applications will require fewer HID lights.
This decreases the total power consumption
(amp/Current draw) dedicated to lighting.
Computer designed optics deliver a wide and soft
light, which minimizes shadows and reflections.
The 1010 HID is designed to operate in high
vibration off-road applications - ex. agricultural,
construction, mining, forestry equipment, general
purpose lighting, etc. |
|
|
Features:
Bulb
- 35W
HID D1S Xenon
- Color
Temperature: 4,200°K
Ballast
Lens
-
Asymmetric or symmetric lens pattern
- Borosilicate Lenses
Special Lens Option
- Lens can be coated to
provide a higher light color temperature to match
halogen light color to Xenon (HID) light color
Reflector
- Multi-parbolic
- Die cast aluminum
Housing
- Black
Nylon (PA6)
-
Vibration dampened (extreme shock and vibration
resistant)
Bracket
& Mounting Hardware
Mounting
Options
-
Standing, hanging & side mounts
Standards
-
Conforms, fully or in part, to SAE J1113, ISO 7697,
Cispr 25
|
|
|
|
|
|
 |
|
Light
Patterns |
|
Asymmetrical |
Symmetrical |
 |
 |
|
|
 |
|
DMK lights
are available with dampened or undampened brackets in three
different heights; 25mm, 30mm or 40mm. Dampened brackets are
recommended for off-road uses or in environments where the
light may be subjected to excessive vibration. Brackets are
also available in three mounting bolt sizes; M8, M10 or M12.
Please call our knowledgeable support staff at 715-344-8600
to discuss your specific needs.
|
|
For more information contact one of our
Alliance Partners.
Information contained herein can change at anytime
|
|
|
 |
|
