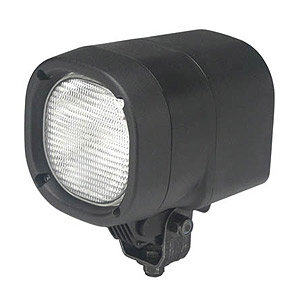

Tyri 1010 HID
Integrated
Ballast |
|
The
1010 Integrated Ballast HID (High Intensity Discharge) lights provide
significantly more light (lumens per watt-Luminous
Flux). The 1010 Integrated Ballast HID
provides light of daylight quality with a luminous
flux of 3,250 lumens (equal to 4 standard 55W
halogen lights). HID bulbs have approximately
10 times the burn life of halogen bulbs. When
replacing halogen lights with HID lights, most
applications will require fewer HID lights.
This decreases the total power consumption
(amp/Current draw) dedicated to lighting.
Computer designed optics deliver a wide and soft
light, which minimizes shadows and reflections.
The 1010 Integrated Ballast HID is designed to operate in high
vibration off-road applications - ex. agricultural,
construction, mining, forestry equipment, general
purpose lighting, etc. |
|
|
Features:
Bulbs
Voltage
Ballast
- Fully
integrated into housing
Lens
-
Asymmetric, symmetric, high beam
- Custom
lens can be developed
Housing
- Nylon
6, vibration dampened

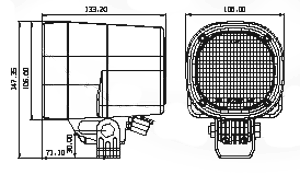

Mounting Options
-
Bracket heights: 25mm, 30mm, 40mm
-
Mounting bolts: M8, M10 or M12
-
Standing, hanging, side mount
-
Mounting Orientation: maximum + 15°
off
horizontal to attain good bulb life
-
Connector: built-in-Deutsch DT04-2P
-
All hardware has corrosion resistant
coating
|
|
|
|
|
|
 |
|
Light
Patterns |
|
Asymmetrical |
Symmetrical |
 |
 |
|
|
 |
|
DMK lights
are available with dampened or undampened brackets in three
different heights; 25mm, 30mm or 40mm. Dampened brackets are
recommended for off-road uses or in environments where the
light may be subjected to excessive vibration. Brackets are
also available in three mounting bolt sizes; M8, M10 or M12.
Please call our knowledgeable support staff at 715-344-8600
to discuss your specific needs.
|
|
For more information contact one of our
Alliance Partners.
Information contained herein can change at anytime
|
|
|
 |
|
