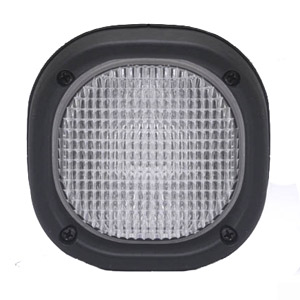

Tyri 1010F

Whether as a fixed position general-purpose light or as an extreme service high vibration/high shock resistant light, the 1010F is configured to provide dependable long life performance.  Custom lens patterns can be developed for specific applications. The 1010F is used in a wide range of applications.  Applications include agricultural and construction equipment, fork lifts, forestry equipment, mining equipment, ground support equipment, utility vehicles, turf maintenance equipment, general purpose lighting, etc.

Features:

Bulb

  • 35W Xenon D1S


Voltage

  • 12V or 24V

Ballast

  • Fully integrated into housing

Lens

  • Asymmetric, symmetric, high or low beam
  • Custom lens can be developed

Housing

  • Nylon 6, vibration dampened


Mounting Options

  • Bracket heights: 25mm, 30mm, 40mm
  • Mounting bolts: M8, M10 or M12
  • Standing, hanging, side and flush mount
  • Mounting Orientation: maximum + 15° off horizontal to attain good bulb life
  • All hardware has corrosion resistant coating




Light Patterns
Asymmetrical Symmetrical

DMK lights are available with dampened or undampened brackets in three different heights; 25mm, 30mm or 40mm. Dampened brackets are recommended for off-road uses or in environments where the light may be subjected to excessive vibration. Brackets are also available in three mounting bolt sizes; M8, M10 or M12. Please call our knowledgeable support staff at 715-344-8600 to discuss your specific needs.



For more information contact one of our Alliance Partners.
Information contained herein can change at anytime
