WORKLIGHTS HOME |
|
 |
 |
|
|
| |

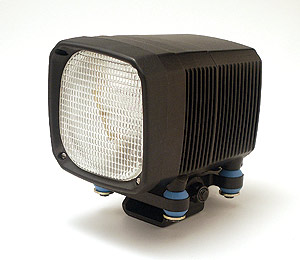

Tyri 1414 HID |
|
The
Series 1414 HID (high Intensity Discharge) lights
provide significantly more light (lumens per
watt-Luminous Flux). The Series 1414 HID
provides light of daylight quality with a luminous
flux of 5,000 lumens (equal to 6 standard 70W
halogen lights). HID bulbs have approximately
10 times the burn life of halogen bulbs. When
replacing halogen lights with HID lights, most
applications will require fewer HID lights.
This decreases the total power consumption
(amp/Current draw) dedicated to lighting.
Computer designed optics deliver a wide and soft
light, which minimizes shadows and reflections.
The Series 1414 HID is designed to operate in high
vibration off-road applications - ex. agricultural,
construction, mining, and forestry equipment. |
|
|
Features:
Bulbs
- 70 W
Metal Halide Discharge Tube
- Color
Temperature: 5,200°K (standard) 4,200°K (optional)
Nominal
Voltage
Ballast
- Fully
integrated into light housing
Lens
-
Asymmetric or symmetric lens pattern
-
Patters: horizontal to 180°
-
hardened glass
Housing
-
Die-cast aluminum, powder coated, dust and water
resistant
-
Vibration Resistant
Bracket
& Mounting Hardware
- Black
Zinc dichromate plated
Weight
Temperature Range
- -55°C
to +65°C, depending upon air circulation
Standards
-
Conforms, fully or in part, to SAE J1113, ISO 7697,
Cispr 25
|
|
|
|
|
|
Light
Patterns |
|
Asymmetrical |
Symmetrical |
 |
 |
|
|
For more information contact one of our
Alliance Partners.
Information contained herein can change at anytime
|
|
|
 |
|
